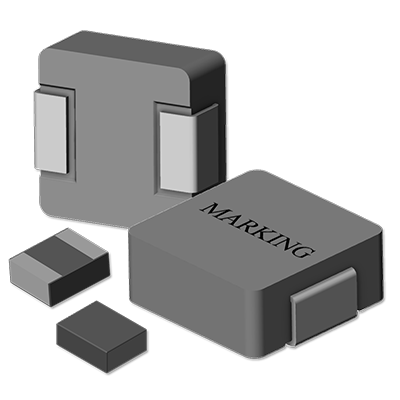

MOLDED INDUCTOR

Ultra low buzz noise due to molded construction.
Soft saturation characteristic to withstand high current spikes.
Molded Inductor frequency range up to 5MHz max.
Automotive Grade with a -55°C to +155°C max part temperature Line up.

※ Scroll horizontally to see the contents.

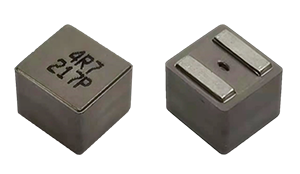

MNR SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Metal Powder Molded SMD	SPI-201610MNR	0.24 ~ 2.2	5.6 ~ 1.9	5.0 ~ 1.7	2.0	1.6	1.0	125	Commercial	Data
		SPI-252010MNR	0.22 ~ 4.7	7.9 ~ 1.8	5.9 ~ 1.36	2.5	2.0	1.0	125	Commercial	Data
		SPI-252012MNR	0.47 ~ 4.7	5.3 ~ 1.9	4.6 ~ 1.6	2.5	2.0	1.2	125	Commercial	Data
		SPI-201610MNRS	0.33~2.2	6.0~2.6	4.7~1.9	2.0	1.6	1.0	125	Commercial	Data
		SPI-252010MNRS	0.33~2.2	7.1~3.5	5.6~2.3	2.5	2.0	1.0	125	Commercial	Data

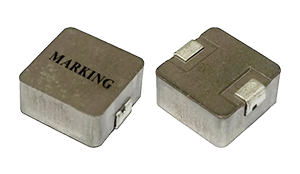

VHM(A) SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Metal Powder Molded SMD	SPI-4012VHM(A)	0.15 ~ 4.7	13.5 ~ 2.2	7.5 ~ 2.0	4.4	4.2	1.2	125	Automotive	Data
		SPI-4020VHM(A)	0.10 ~ 22	22 ~ 1,4	14.5 ~ 1.2	4.4	4.2	2.0	125	Automotive	Data
		SPI-5018VHM(A)	0.47 ~ 10	15.5 ~ 3.0	10.5 ~ 2.5	5.4	5.2	1.8	125	Automotive	Data
		SPI-5030VHM(A)	0.10 ~ 22	30 ~ 2.3	17.5 ~ 2.3	5.4	5.2	3.0	125	Automotive	Data
		SPI-7015VHM(A)	0.47 ~ 10	16 ~ 3.0	10 ~ 2.0	7.0	6.6	1.5	125	Automotive	Data
		SPI-7018VHM(A)	0.10 ~ 22	30 ~ 2.3	24.5 ~ 1.6	7.0	6.6	1.8	125	Automotive	Data
		SPI-7024VHM(A)	0.22 ~ 22	33 ~ 2.5	20 ~ 2.0	7.0	6.6	2.4	125	Automotive	Data
		SPI-7030VHM(A)	0.22 ~ 47	34 ~ 2.0	20 ~ 1.5	7.0	6.6	3.0	125	Automotive	Data
		SPI-7040VHM(A)	0.68 ~ 47	16 ~ 1.9	17 ~ 1.8	7.0	6.6	4.0	125	Automotive	Data
		SPI-7050VHM(A)	0.47 ~ 47	21 ~ 2.6	20 ~ 2.2	7.0	6.6	5.0	125	Automotive	Data
		SPI-1030VHM(A)	0.22 ~ 33	50 ~ 4.0	34 ~ 3.1	11.5	10.0	3.0	125	Automotive	Data
		SPI-1040VHM(A)	0.15 ~ 100	75 ~ 2.3	32 ~ 2.0	11.5	10.0	4.0	125	Automotive	Data
		SPI-1050VHM(A)	0.22 ~ 100	65 ~ 2.8	38 ~ 2.3	11.5	10.0	5.0	125	Automotive	Data
		SPI-1340VHM(A)	0.22 ~ 22	50 ~ 6.0	42 ~ 4.5	13.45	12.8	4.0	125	Automotive	Data
		SPI-1350VHM(A)	0.22 ~ 47	75 ~ 5.0	50 ~ 3.0	13.45	12.6	5.0	125	Automotive	Data
		SPI-1360VHM(A)	4.7 ~ 150	24 ~ 2.7	15 ~ 1.5	13.45	12.6	6.0	125	Automotive	Data
		SPI-1365VHM(A)	4.7 ~ 100	24 ~ 4.0	16 ~ 3.5	13.45	12.6	6.5	125	Automotive	Data
		SPI-1770VHM(A)	2.2 ~ 100	34 ~ 5.0	29 ~ 3.7	17.15	17.15	7.0	125	Automotive	Data

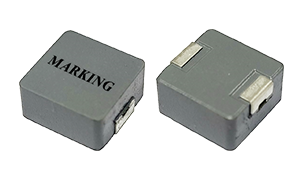

VHC(A) SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound CIP Powder Molded SMD	SPI-4020VHC(A)	0.22 ~ 10	24 ~ 2.3	11 ~ 1.8	4.4	4.2	2.0	125	Automotive	Data
		SPI-5020VHC(A)	0.22 ~ 22	25 ~ 1.8	15 ~ 1.5	5.7	5.2	2.0	125	Automotive	Data
		SPI-5030VHC(A)	0.22 ~ 10	21 ~ 3.5	15.5 ~ 2.75	5.7	5.2	3.0	125	Automotive	Data
		SPI-7018VHC(A)	0.22 ~ 10	26 ~ 3.5	16 ~ 2.3	7.3	6.6	1.8	125	Automotive	Data
		SPI-7024VHC(A)	0.22 ~ 10	34 ~ 5.0	21 ~ 3.2	7.3	6.6	2.4	125	Automotive	Data
		SPI-7030VHC(A)	0.1 ~ 47	60 ~ 2.0	32.5 ~ 1.75	7.3	6.6	3.0	125	Automotive	Data
		SPI-7050VHC(A)	0.22 ~ 33	35 ~ 3.5	25 ~ 2.0	7.3	6.6	5.0	125	Automotive	Data
		SPI-1030VHC(A)	1.0 ~ 10	20 ~ 8.0	15 ~ 5.0	11.0	10.0	3.0	125	Automotive	Data
		SPI-1040VHC(A)	0.22 ~ 47	60 ~ 4.5	35 ~ 3.0	11.0	10.0	4.0	125	Automotive	Data
		SPI-1335VHC(A)	0.47 ~ 4.7	55 ~ 22	32 ~ 9.0	13.5	12.6	3.5	125	Automotive	Data
		SPI-1350VHC(A)	0.33 ~ 10	80 ~ 16	42 ~ 9.0	13.5	12.6	5.0	125	Automotive	Data
		SPI-1360VHC(A)	0.47 ~ 68	64 ~ 9.0	38 ~ 5.0	13.5	12.6	6.0	125	Automotive	Data
		SPI-1365VHC(A)	0.47 ~ 68	63 ~ 7.8	41 ~ 4.8	13.5	12.6	6.5	125	Automotive	Data
		SPI-1770VHC(A)	1.0 ~ 100	60 ~ 6.5	52 ~ 5.3	17.5	17.0	7.0	125	Automotive	Data

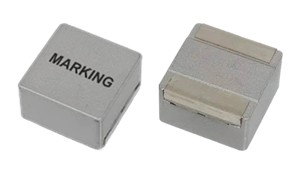

HPM(A) SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Flat Wire Metal Powder Molded SMD	SPI-4020HPM(A)	0.1 ~ 2.2	38 ~ 6.5	18 ~ 4.6	4.1	4.1	2.1	125	Automotive	Data
		SPI-4030HPM(A)	0.47 ~ 6.8	15.2 ~ 3.6	14 ~ 3.9	4.1	4.1	3.1	125	Automotive	Data
		SPI-5020HPM(A)	0.15 ~ 1.5	30 ~ 11.2	17.3 ~ 8.5	5.5	5.3	2.1	125	Automotive	Data
		SPI-5030HPM(A)	0.15 ~ 4.7	36 ~ 8.0	21 ~ 5.5	5.5	5.3	3.1	125	Automotive	Data
		SPI-5050HPM(A)	5.6 ~ 10	8.6 ~ 6.5	6.7 ~ 4.9	5.5	5.3	5.0	125	Automotive	Data
		SPI-6030HPM(A)	0.18 ~ 4.7	40 ~ 8.5	25.7 ~ 6.5	6.6	6.4	3.1	125	Automotive	Data
		SPI-6050HPM(A)	0.82 ~ 8.2	23.8 ~ 6.8	16.6 ~ 6.2	6.6	6.4	5.0	125	Automotive	Data
		SPI-6060HPM(A)	1.0 ~ 22	20.3 ~ 5.6	17.0 ~ 4.1	6.6	6.4	6.0	125	Automotive	Data
		SPI-7030HPM(A)	1.0 ~ 8.2	28 ~ 8.8	15.8 ~ 5.0	7.8	7.6	3.1	125	Automotive	Data
		SPI-7070HPM(A)	3.3 ~ 6.8	17.4 ~ 12.8	12.9 ~ 9.2	7.8	7.6	7.0	125	Automotive	Data
		SPI-1580HPM(A)	2.0 ~ 8.2	57 ~ 28	29.3 ~ 16.4	16.5	15.5	8.0	125	Automotive	Data
		SPI-1510HPM(A)	1 ~ 33	85 ~ 16.1	52 ~ 10.5	16.5	15.5	10.0	125	Automotive	Data
		SPI-1010HPM(A)	3.3 ~ 15	27 ~ 15.4	21 ~ 9.8	11.9	11.0	10.0	125	Automotive	Data
		SPI-7020HPM(A)	0.27 ~ 1.0	35 ~ 21.8	21.0 ~ 11.0	7.8	7.6	2.05	125	Automotive	Data
		SPI-8080HPM(A)	1.8 ~ 10	26.5 ~ 11	20.3 ~ 8.0	8.9	8.5	8.0	125	Automotive	Data
		SPI-1031HPM(A)	0.28 ~ 1.5	61.7 ~ 24.3	31.2 ~ 16.1	11.9	11.0	3.1	125	Automotive	Data
		SPI-1060HPM(A)	0.68 ~ 4.7	55 ~ 23.1	34 ~ 12.8	11.9	11.0	6.0	125	Automotive	Data
		SPI-1513HPM(A)	3.3 ~ 33	46 ~ 15.9	30.9 ~ 10.5	16.5	15.5	13.0	125	Automotive	Data

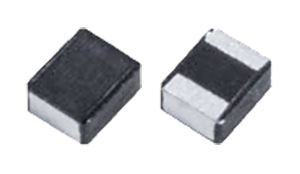

VTY SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Metal Powder Molded SMD	SPI-2213VTY	0.47~400	100~6.0	58~3.8	22.5	22.0	13.0	125	Automotive	Data
