FLAT WIRE INDUCTOR 1 페이지

본문 바로가기

다양한 마그네틱 제품 솔루션 제공

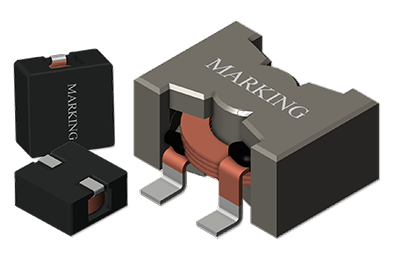

FLAT WIRE INDUCTOR

Flat wire winding type high current and low DCR products.
Magnetic shielded structure - excellent resistance to electro magnetic interference(EMI).
Assemblage design, sturdy structure.
Operating temperature -40°C to +125°C

※ Scroll horizontally to see the contents.

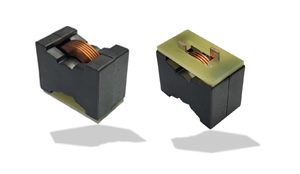

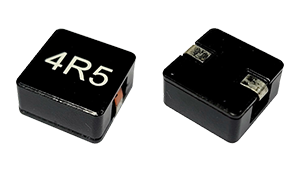

FSM SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Ferrite Core Shielded SMD	SPI-5040FSM	0.22 ~ 5.6	25 ~ 4.6	20 ~ 4.5	5.3	5.6	4.3	125	Commercial	Data
		SPI-7030FSM	0.13 ~ 2.0	48 ~ 9.0	22 ~ 6.5	6.9	7.0	3.3	125	Commercial	Data
		SPI-7040FSM	0.22 ~ 4.7	32 ~ 7.0	21 ~ 6.0	6.9	7.0	4.0	125	Commercial	Data
		SPI-7050FSM	0.24 ~ 10	28 ~ 4.0	20 ~ 3.5	6.9	7.0	5.0	125	Commercial	Data
		SPI-1030FSM	0.2 ~ 2.2	50 ~ 15	22 ~ 9.0	10.2	10.5	3.1	125	Commercial	Data
		SPI-1040FSM	0.15 ~ 4.3	60 ~ 8.0	25 ~ 8.0	10.2	10.5	4.2	125	Commercial	Data
		SPI-1050FSM	0.16 ~ 16	58 ~ 6.5	25 ~ 5.0	10.2	10.5	5.0	125	Commercial	Data
		SPI-1335FSM	0.25 ~ 3.3	60 ~ 14	24 ~ 12	12.8	13.0	3.5	125	Commercial	Data
		SPI-1350FSM	0.19 ~ 10	60 ~ 10	29 ~ 8.5	12.8	13.0	5.0	125	Commercial	Data
		SPI-1365FSM	0.2 ~ 22	65 ~ 6.5	32 ~ 6.0	12.8	13.0	6.5	125	Commercial	Data
		SPI-1892FSM	0.82 ~ 47	65 ~ 7.0	41.5 ~ 6.8	18.2	18.3	9.2	125	Commercial	Data
		SPI-2212FSM	3.3 ~ 82	45 ~ 8.5	29 ~ 7.0	22.0	22.5	12.0	125	Commercial	Data

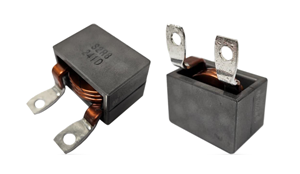

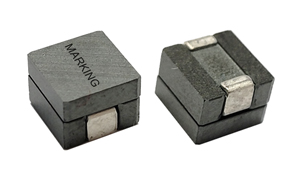

FSB SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Ferrite Core Shielded SMD	SPI-1052FSB	0.8 ~ 5.7	25.6 ~ 6.0	16.3 ~ 11.5	10.6	10.6	5.2	125	Commercial	Data
		SPI-1358FSB	0.33 ~ 10	43 ~ 7.5	16.9 ~ 7.2	13.0	13.5	5.8	125	Commercial	Data
		SPI-1390FSB	10 ~ 47	13.16 ~ 3.2	9.2 ~ 7.7	13.0	13.5	9.0	125	Commercial	Data
		SPI-1582FSB	0.4 ~ 47	66 ~ 3.0	23 ~ 2.5	14.9	15.1	8.2	125	Commercial	Data
		SPI-15120FSB	4.7 ~ 22	18.4 ~ 6.4	13 ~ 8.3	14.9	15.1	12.2	125	Commercial	Data

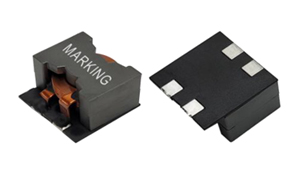

PQ-S SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Ferrite Core Shielded SMD	SPI-PQ2014T	0.7 ~ 47	75 ~ 8.5	32 ~ 12	20.0	24.5	14.5	125	Commercial	Data
		SPI-PQ2915HT	2.2 ~ 22	100 ~ 8.6	30 ~ 30	27.9	28.5	15.4	150	Automotive	Data
		SPI-PQ2918HT	3.3 ~ 33	93.6 ~ 9.6	28 ~ 28	27.9	28.5	17.5	125	Commercial	Data
		SPI-PQ2016HT	2.2 ~ 3.3	50 ~ 42	37 ~ 35	21.8	24.5	17.0	150	Automotive	Data
	Wire Wound Ferrite Core Shielded SMD	SPI-PQ2614BSH	2.2~22	100~8.6	30~30	27.9	25.6	16.0	125	Automotive	Data
		SPI-PQ2614BSL	1.5~15	115~10	33~33	27.9	25.6	16.0	125	Automotive	Data
		SPI-PQ2617BSH	3.3~33	86~8.7	28~28	27.9	25.6	19.0	125	Automotive	Data
		SPI-PQ2617BSL	3.3~22	75~11	29~29	27.9	25.6	19.0	125	Automotive	Data

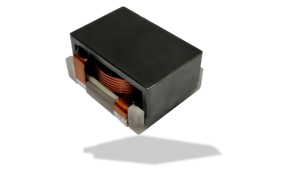

SR SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(nH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Ferrite Core Shielded SMD	SPI-106012SRV	70~150	170~85	45 (83)	10.0	6.0	12.0	150	Commercial	Data
		SPI-107010SRV	70~250	130~40	44 (81)	10.0	7.0	10.0	150	Commercial	Data
		SPI-906080SRV	68 ~ 220	110 ~ 45	38(67)	9.7	6.6	8.0	150	Commercial	Data
		SPI-106090SRV	70 ~ 220	145 ~ 47	50(80)	9.6	6.4	9.3	150	Commercial	Data
	Wire Wound Ferrite Core Shielded SMD	SPI-707050SRH	72~220	63~26	36 (67)	7.2	7.0	5.1	150	Commercial	Data
		SPI-107050SRH	85~220	110~35	35 (62)	10.2	7.0	5.0	150	Commercial	Data
		SPI-108070SRH	70~300	135~31	36 (64)	10.2	7.8	7.0	150	Commercial	Data
		SPI-108080SRH	70~300	150~38	41 (75)	10.2	8.0	8.1	150	Commercial	Data
		SPI-404040SRH	50~100	38~18	28(60)	3.9	3.9	4.0	150	Commercial	Data
		SPI-505030SRH	60~100	48~31	23(38)	5.0	5.0	3.0	150	Commercial	Data

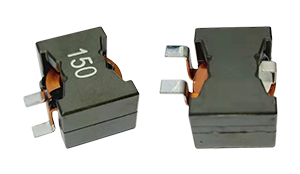

PQ-L SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Ferrite Core Shielded Lead	SPI-PQ2915VHT	2.2~22	100~8.6	30~30	27.9	15.4	22.0	125	Commercial	Data

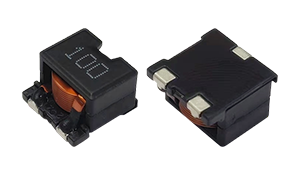

ER-S SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Ferrite Core Shielded SMD	SPI-ER3020BSH	3.3~15	60~18.9	30~30	30.3	24.5	15.0	125	Automotive	Data

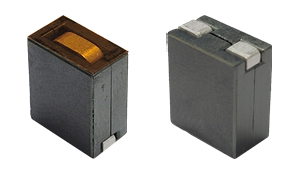

ER-L SERIES

Image	Features	Part Number	Inductance	Isat	Irms	Size (mm)			Max Temp.	Grade	Download
Image	Features	Part Number	(uH)	(A, Typ.)	(A, Typ.)	L	W	H	(℃)	Grade	Download
	Wire Wound Shielded SMD MPC	SPI-ER3222X06LH-2R8	2.8	100	95	27.7	31.5	13.5	125	Automotive	Data
